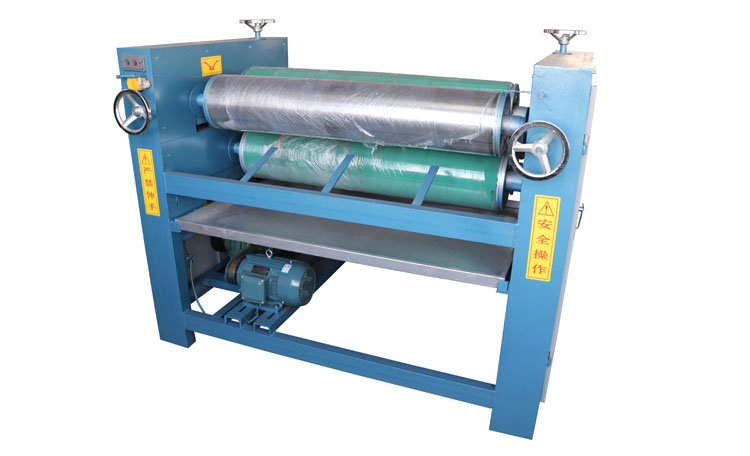

1.1 m × Φ245 four-roll glue coating machine

1.1 m × Φ245 four-roll glue coating machine
Parameter Performance
Parameters of the coating machine
model1.1 m × Φ245 four-roll glue coating machine
Assembly formFront and rear assembly
Coating formDouble-sided
transfer methodSprocket drive
Rubber roller length(mm)1100
Rubber roller diameter(mm)Φ245
Squeeze roll diameter(mm)Φ217(plating)
Line speed(m/min)30
Motor(KW)3
电压(V)


380



The gluing machine is suitable for single-sided or double-sided gluing of plywood such as plywood, multi-layer boards, veneers, joinery, etc. It uses excellent rubber to make rubber rollers, which are precisely processed by lathes and grinders. , The size of the glue can be adjusted and other advantages.
