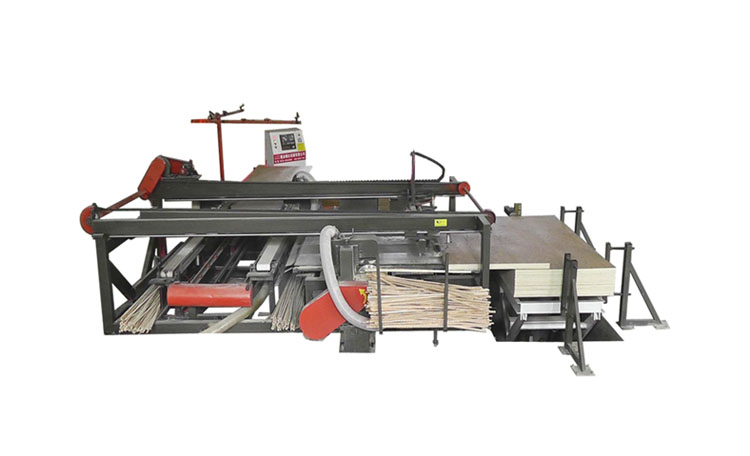

Ecological board automatic sawing machine

Ecological board automatic sawing machine
Parameter Performance
Parameters of automatic edge sawing machine
modelJS48-1-B
Equipped systemPLCsystem/server system
Processing thickness(mm)3-60
Processing size(mm)1220-1240   2440-2460
Saw blade diameter(mm)φ305
Saw blade speed(r/min)6100
Feeding speed(m/min)0-30
Equipped with power(KW)40
Sawing motor(KW)7.5


Jianye Shunda Machinery has developed a new type of high-volume, high-performance, high-quality automatic edge sawing machine for plywood, which is a kind of equipment suitable for the sawing and production of all wood-based panels. It has been highly evaluated by customers at home and abroad. Features are as follows:


 1. Jianye Shunda plywood automatic sawing machine 1 sawing output tops the original output of two automatic sawing machines (new servo control system)


 2. Jianye Shunda plywood automatic sawing machine is fast (it takes only 19 seconds to saw 3 18MM multilayer boards, using the function of cutting out)


 Example: (1) Production of plywood saw 20 sheets per second, 60 sheets per minute, 3600 sheets per hour, nearly 28800 sheets of plywood in 8 hours of work, 86400 sheets of sheet material in 24 hours (based on theory Calculations).


   (2) For the production of 18 cm multi-layer boards, each saw 3 sheets, 9 sheets per minute, 540 sheets per hour, more than 4,320 multi-layer sheets in 8 hours, and 12,960 sheets in 24 hours ( Calculated by theory).


 3. The new design power transmission, the sawing effect is smoother, and the product quality is improved by another step.


  4. The new frame is designed and refined, which is more reasonable and stable. It is your preferred product.


 This product is suitable for sawing edges such as particleboard, MDF, Malacca, plywood, blockboard, multi-layer boards, fire-resistant boards, melamine substrates, building templates, plastic-steel membrane boards, bamboo-clad boards, flame-retardant boards, and packaging boards. .
